首頁歐美晶振 FOX晶振FC3BQBBME27.0-T1,3225mm,FOX小體積晶振,27MHz晶體

FC3BQBBME27.0-T1,3225mm,FOX小體積晶振,27MHz晶體

編號：91063329
頻率：27.000MHz
尺寸：3.2x2.5mm

FC3BQBBME27.0-T1,3225mm,FOX小體積晶振,27MHz晶體,智能家居晶振，美國進口晶振，FOX晶振，福克斯晶振，型號：FC3BQ，(FormerFQ3225B)，編碼為：FC3BQBBME27.0-T1，頻率為：27MHz，頻率穩定性：50ppm，頻率容差：50pp...

分享到

FC3BQBBME27.0-T1,3225mm,FOX小體積晶振,27MHz晶體,智能家居晶振，美國進口晶振，FOX晶振，福克斯晶振，型號：FC3BQ，(Former FQ3225B)，編碼為：FC3BQBBME27.0-T1，頻率為：27MHz，頻率穩定性：±50ppm，頻率容差：±50ppm，負載電容：20pF，工作溫度范圍：-10℃至+70℃，小體積晶振尺寸：3.2x2.5x0.6mm封裝，四腳貼片晶振，石英晶體，無源晶振，3225晶振，SMD晶振，石英晶體諧振器，無鉛環保晶振。具有超小型，輕薄型，高性能，高品質，耐熱及耐環境等特點，被廣泛用于：智能家居產品，通訊設備，平板電腦，智能手機，無線網絡，藍牙模塊，安防設備，數碼電子等應用。

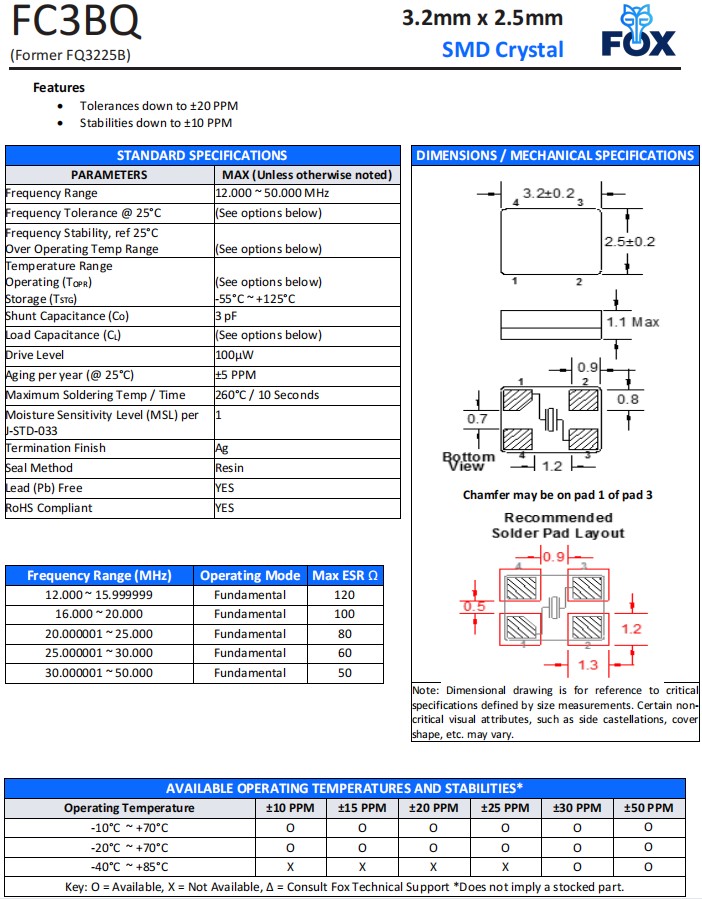

FC3BQBBME27.0-T1,3225mm,FOX小體積晶振,27MHz晶體,智能家居晶振,參數表

PARAMETERS

MAX (Unless otherwise noted)

Frequency Range

27 MHz

Frequency Tolerance @ 25°C

(See options below)

Frequency Stability, ref 25°C
Over Operating Temp Range

(See options below)

Temperature Range
Operating (TOPR)
Storage (TSTG)

(See options below)
-55°C ~ +125°C

Shunt Capacitance (CO)

3 pF

Load Capacitance (CL)

(See options below)

Drive Level

100µW

Aging per year (@ 25°C)

±5 PPM

Maximum Soldering Temp / Time

260°C / 10 Seconds

Moisture Sensitivity Level (MSL) per
J-STD-033

Termination Finish

Seal Method

Resin

Lead (Pb) Free

YES

RoHS Compliant

YES

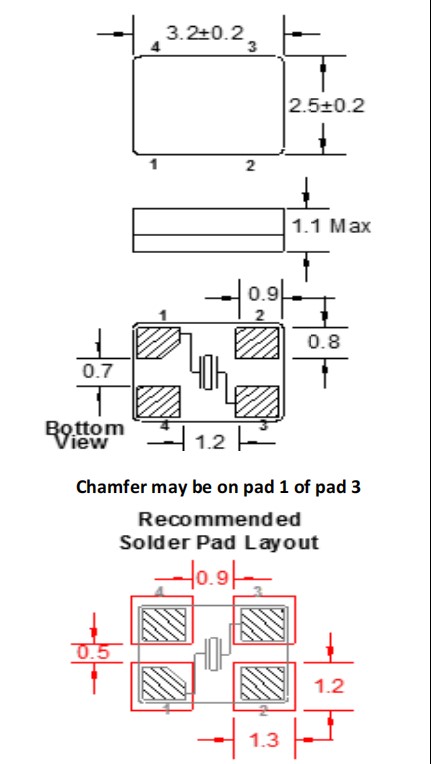

FC3BQBBME27.0-T1,3225mm,FOX小體積晶振,27MHz晶體,智能家居晶振,尺寸圖

產品編碼	進口晶振	型號	頻率	頻率穩定性
FC3BQBBDM20.0-T3	Fox晶振	FC3BQ	20 MHz	±50ppm
FC3BQBBME12.0-T3	Fox晶振	FC3BQ	12 MHz	±50ppm
FC3BQBBME16.0-T1	Fox晶振	FC3BQ	16 MHz	±50ppm
FC3BQBBME24.0-T1	Fox晶振	FC3BQ	24 MHz	±50ppm
FC3BQBBME25.0-T1	Fox晶振	FC3BQ	25 MHz	±50ppm
FC3BQBBME25.0-T3	Fox晶振	FC3BQ	25 MHz	±50ppm
FC3BQBBME27.0-T1	Fox晶振	FC3BQ	27 MHz	±50ppm
FC3BQBBMM12.0-T1	Fox晶振	FC3BQ	12 MHz	±50ppm
FC3BQBBMM12.0-T3	Fox晶振	FC3BQ	12 MHz	±50ppm
FC3BQBBMM24.0-T1	Fox晶振	FC3BQ	24 MHz	±50ppm
FC3BQBBMM24.0-T3	Fox晶振	FC3BQ	24 MHz	±50ppm
FC3BQBBMM25.0-T1	Fox晶振	FC3BQ	25 MHz	±50ppm
FC3BQBBMM25.0-T3	Fox晶振	FC3BQ	25 MHz	±50ppm
FC3BQBBVM25.0-T3	Fox晶振	FC3BQ	25 MHz	±50ppm
FC3BSBBEM26.0-T3	Fox晶振	FC3BS	26 MHz	±50ppm
FC3BSBBLM25.0-T3	Fox晶振	FC3BS	25 MHz	±50ppm
FC3BSBBMM25.0-T3	Fox晶振	FC3BS	25 MHz	±50ppm
FC3BSHFEM12.0-T3	Fox晶振	FC3BS	12 MHz	±15ppm
FC3BSHHEF26.0-T3	Fox晶振	FC3BS	26 MHz	±10ppm
FC3BSHHEF32.0-T3	Fox晶振	FC3BS	32 MHz	±10ppm
FC3BSHLGA27.0-1-T3	Fox晶振	FC3BS	27 MHz	±5ppm
FC3VAEEGM50.0-T3	Fox晶振	FC3VA	50 MHz	±20ppm
