- 編號：66770305
- 頻率：32.768KHz
- 尺寸：2012mm
FCT2M03276804W3二腳晶振,富士晶振,領先同行的6G網絡設備晶振
FCT2M03276804W3二腳晶振,富士晶振,領先同行的6G網絡設備晶振，F(xiàn)UJI晶振公司，富士晶振，小體積晶振，進口晶振，高精度晶振，2012晶振，石英晶振，二腳晶振，無源晶振，KHz晶振，貼片晶振，音叉晶振，6G通訊專用晶振，...
.jpg)
FCT2M03276804W3二腳晶振,富士晶振,領先同行的6G網絡設備晶振，F(xiàn)UJI晶振公司，富士晶振，小體積晶振，進口晶振，高精度晶振，2012晶振，石英晶振，二腳晶振，無源晶振，KHz晶振，貼片晶振，音叉晶振，6G通訊專用晶振，6G網絡晶振，高品質晶振，F(xiàn)CT-2M晶振，超小尺寸2.0×1.2×0.6 mm，高可靠性環保性能，高頻穩定性好，精度高，設計用于自動安裝和回流焊，符合RoHS標準/無鉛
.gif)
FCT2M03276804W3二腳晶振,富士晶振,領先同行的6G網絡設備晶振
.gif)
FCT2M03276804W3二腳晶振,富士晶振,領先同行的6G網絡設備晶振

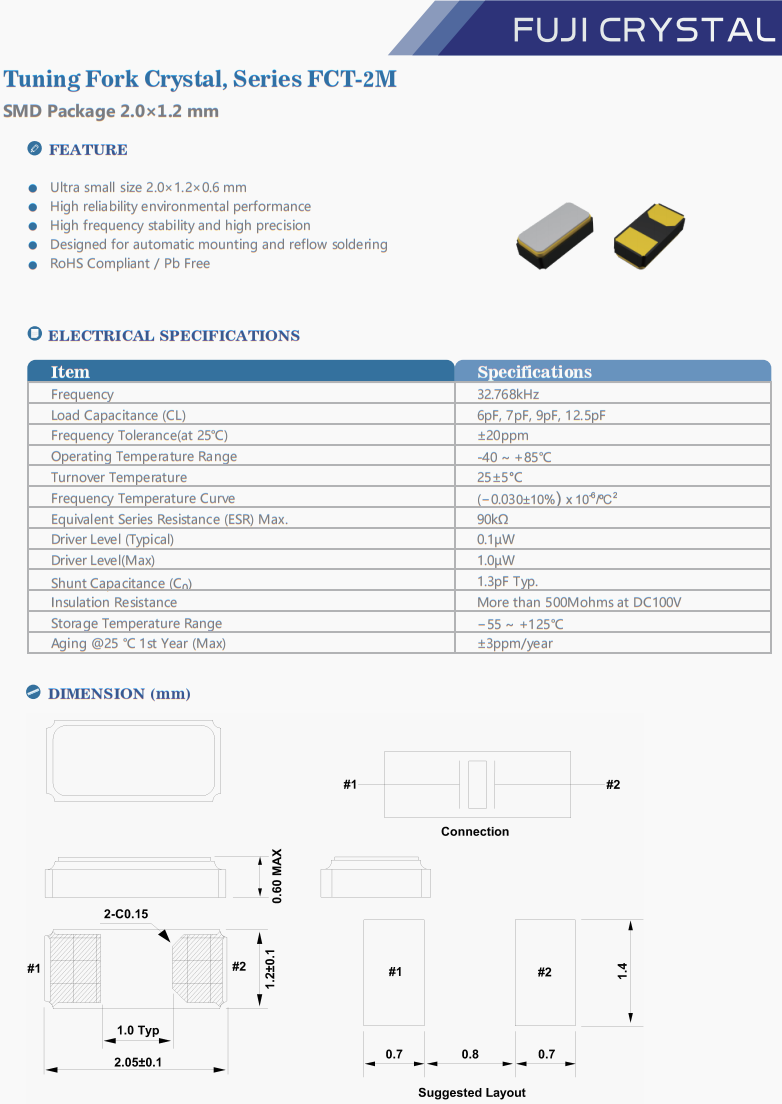

| 項目 | 技術規格 |
| 頻率 | 32.768kHz |
| 負載電容 | 6pF, 7pF, 9pF, 12.5pF |
| 頻率容差 | ±20ppm |
| 工作溫度 | -40 ~ +85℃ |
| 周轉溫度 | 25±5°C |
| 頻率溫度曲線 | (−0.030± 10%) x 10-6/ºC2 |
| 等效串聯電阻最大值 | 90kΩ |
| 驅動電平（標準） | 0.1µW |
| 驅動電平（最大） | 1.0µW |
| 分流電容 | 1.3pF Typ. |
| 絕緣電阻 | More than 500Mohms at DC100V |
| 儲存溫度 | − 55 ~ +125℃ |
| 老化 | ±3ppm/year |
FCT2M03276804W3二腳晶振,富士晶振,領先同行的6G網絡設備晶振
| 原廠編碼 | 生產商 | 型號 | 頻率 | 負載電容 | 工作溫度 |
| FCT2M03276805W6 | Fuji晶振 | FCT-2M | 32.768 kHz | 5pF | 0°C ~ 70°C |
| FCT2M03276807E5 | Fuji晶振 | FCT-2M | 32.768 kHz | 7pF | -20°C ~ 70°C |
| FCT2M03276806Y5 | Fuji晶振 | FCT-2M | 32.768 kHz | 6pF | -40°C ~ 85°C |
| FCT2M032768C5E3 | Fuji晶振 | FCT-2M | 32.768 kHz | 12.5pF | -20°C ~ 70°C |
| FCT2M03276807E6 | Fuji晶振 | FCT-2M | 32.768 kHz | 7pF | -20°C ~ 70°C |
| FCT2M03276806Y3 | Fuji晶振 | FCT-2M | 32.768 kHz | 6pF | -40°C ~ 85°C |
| FCT2M03276812U6 | Fuji晶振 | FCT-2M | 32.768 kHz | 12pF | -40°C ~ 105°C |
| FCT2M03276804D1 | Fuji晶振 | FCT-2M | 32.768 kHz | 4pF | -10°C ~ 70°C |
| FCT2M03276810U6 | Fuji晶振 | FCT-2M | 32.768 kHz | 10pF | -40°C ~ 105°C |
| FCT2M03276807D5 | Fuji晶振 | FCT-2M | 32.768 kHz | 7pF | -10°C ~ 70°C |
| FCT2M03276807S5 | Fuji晶振 | FCT-2M | 32.768 kHz | 7pF | -20°C ~ 75°C |
| FCT2M03276812Y1 | Fuji晶振 | FCT-2M | 32.768 kHz | 12pF | -40°C ~ 85°C |
| FCT2M03276806W3 | Fuji晶振 | FCT-2M | 32.768 kHz | 6pF | 0°C ~ 70°C |
| FCT2M03276809I6 | Fuji晶振 | FCT-2M | 32.768 kHz | 9pF | -40°C ~ 125°C |
| FCT2M03276809W5 | Fuji晶振 | FCT-2M | 32.768 kHz | 9pF | 0°C ~ 70°C |
| FCT2M03276806W6 | Fuji晶振 | FCT-2M | 32.768 kHz | 6pF | 0°C ~ 70°C |
| FCT2M03276804U6 | Fuji晶振 | FCT-2M | 32.768 kHz | 4pF | -40°C ~ 105°C |
| FCT2M03276812D1 | Fuji晶振 | FCT-2M | 32.768 kHz | 12pF | -10°C ~ 70°C |
| FCT2M03276804W3 | Fuji晶振 | FCT-2M | 32.768 kHz | 4pF | 0°C ~ 70°C |
| FCT2M03276803W3 | Fuji晶振 | FCT-2M | 32.768 kHz | 3pF | 0°C ~ 70°C |
| FCT2M03276812S3 | Fuji晶振 | FCT-2M | 32.768 kHz | 12pF | -20°C ~ 75°C |
| FCT2M03276803U5 | Fuji晶振 | FCT-2M | 32.768 kHz | 3pF | -40°C ~ 105°C |
| FCT2M03276805P5 | Fuji晶振 | FCT-2M | 32.768 kHz | 5pF | -10°C ~ 60°C |
| FCT2M03276803P5 | Fuji晶振 | FCT-2M | 32.768 kHz | 3pF | -10°C ~ 60°C |
| FCT2M03276803I6 | Fuji晶振 | FCT-2M | 32.768 kHz | 3pF | -40°C ~ 125°C |
| FCT2M03276804P5 | Fuji晶振 | FCT-2M | 32.768 kHz | 4pF | -10°C ~ 60°C |
| FCT2M032768C5R6 | Fuji晶振 | FCT-2M | 32.768 kHz | 12.5pF | -30°C ~ 70°C |
| FCT2M03276809P3 | Fuji晶振 | FCT-2M | 32.768 kHz | 9pF | -10°C ~ 60°C |
| FCT2M032768C5D3 | Fuji晶振 | FCT-2M | 32.768 kHz | 12.5pF | -10°C ~ 70°C |
| FCT2M03276805P3 | Fuji晶振 | FCT-2M | 32.768 kHz | 5pF | -10°C ~ 60°C |
| FCT2M032768C5D5 | Fuji晶振 | FCT-2M | 32.768 kHz | 12.5pF | -10°C ~ 70°C |
| FCT2M03276809P5 | Fuji晶振 | FCT-2M | 32.768 kHz | 9pF | -10°C ~ 60°C |
| FCT2M03276805W1 | Fuji晶振 | FCT-2M | 32.768 kHz | 5pF | 0°C ~ 70°C |
| FCT2M032768C5S6 | Fuji晶振 | FCT-2M | 32.768 kHz | 12.5pF | -20°C ~ 75°C |
| FCT2M03276807P3 | Fuji晶振 | FCT-2M | 32.768 kHz | 7pF | -10°C ~ 60°C |
| FCT2M03276806I3 | Fuji晶振 | FCT-2M | 32.768 kHz | 6pF | -40°C ~ 125°C |
| FCT2M03276812S6 | Fuji晶振 | FCT-2M | 32.768 kHz | 12pF | -20°C ~ 75°C |
| FCT2M03276805P1 | Fuji晶振 | FCT-2M | 32.768 kHz | 5pF | -10°C ~ 60°C |
| FCT2M03276806P1 | Fuji晶振 | FCT-2M | 32.768 kHz | 6pF | -10°C ~ 60°C |
| FCT2M03276806U3 | Fuji晶振 | FCT-2M | 32.768 kHz | 6pF | -40°C ~ 105°C |
| FCT2M03276806E6 | Fuji晶振 | FCT-2M | 32.768 kHz | 6pF | -20°C ~ 70°C |
| FCT2M03276807T6 | Fuji晶振 | FCT-2M | 32.768 kHz | 7pF | -30°C ~ 85°C |
| FCT2M032768C5Y5 | Fuji晶振 | FCT-2M | 32.768 kHz | 12.5pF | -40°C ~ 85°C |
| FCT2M03276812P3 | Fuji晶振 | FCT-2M | 32.768 kHz | 12pF | -10°C ~ 60°C |
| FCT2M032768C5I3 | Fuji晶振 | FCT-2M | 32.768 kHz | 12.5pF | -40°C ~ 125°C |
| FCT2M03276807E3 | Fuji晶振 | FCT-2M | 32.768 kHz | 7pF | -20°C ~ 70°C |
| FCT2M03276812U3 | Fuji晶振 | FCT-2M | 32.768 kHz | 12pF | -40°C ~ 105°C |
| FCT2M03276806R6 | Fuji晶振 | FCT-2M | 32.768 kHz | 6pF | -30°C ~ 70°C |
| FCT2M03276804S3 | Fuji晶振 | FCT-2M | 32.768 kHz | 4pF | -20°C ~ 75°C |
| FCT2M03276804Y5 | Fuji晶振 | FCT-2M | 32.768 kHz | 4pF | -40°C ~ 85°C |
| FCT2M03276804U3 | Fuji晶振 | FCT-2M | 32.768 kHz | 4pF | -40°C ~ 105°C |
| FCT2M03276807T1 | Fuji晶振 | FCT-2M | 32.768 kHz | 7pF | -30°C ~ 85°C |
| FCT2M03276804D6 | Fuji晶振 | FCT-2M | 32.768 kHz | 4pF | -10°C ~ 70°C |
| FCT2M03276812W3 | Fuji晶振 | FCT-2M | 32.768 kHz | 12pF | 0°C ~ 70°C |
| FCT2M03276805S6 | Fuji晶振 | FCT-2M | 32.768 kHz | 5pF | -20°C ~ 75°C |
| FCT2M03276805E5 | Fuji晶振 | FCT-2M | 32.768 kHz | 5pF | -20°C ~ 70°C |
| FCT2M03276812R3 | Fuji晶振 | FCT-2M | 32.768 kHz | 12pF | -30°C ~ 70°C |
| FCT2M03276806S6 | Fuji晶振 | FCT-2M | 32.768 kHz | 6pF | -20°C ~ 75°C |
| FCT2M03276812T3 | Fuji晶振 | FCT-2M | 32.768 kHz | 12pF | -30°C ~ 85°C |
| FCT2M03276809R5 | Fuji晶振 | FCT-2M | 32.768 kHz | 9pF | -30°C ~ 70°C |
| FCT2M03276809R6 | Fuji晶振 | FCT-2M | 32.768 kHz | 9pF | -30°C ~ 70°C |
| FCT2M03276812E3 | Fuji晶振 | FCT-2M | 32.768 kHz | 12pF | -20°C ~ 70°C |
| FCT2M03276809Y1 | Fuji晶振 | FCT-2M | 32.768 kHz | 9pF | -40°C ~ 85°C |
| FCT2M03276809Y3 | Fuji晶振 | FCT-2M | 32.768 kHz | 9pF | -40°C ~ 85°C |
| FCT2M03276806R3 | Fuji晶振 | FCT-2M | 32.768 kHz | 6pF | -30°C ~ 70°C |
| FCT2M03276806S1 | Fuji晶振 | FCT-2M | 32.768 kHz | 6pF | -20°C ~ 75°C |
| FCT2M03276805Y5 | Fuji晶振 | FCT-2M | 32.768 kHz | 5pF | -40°C ~ 85°C |
| FCT2M03276807Y5 | Fuji晶振 | FCT-2M | 32.768 kHz | 7pF | -40°C ~ 85°C |
| FCT2M03276809Y6 | Fuji晶振 | FCT-2M | 32.768 kHz | 9pF | -40°C ~ 85°C |
| FCT2M03276804S5 | Fuji晶振 | FCT-2M | 32.768 kHz | 4pF | -20°C ~ 75°C |
| FCT2M032768C5I5 | Fuji晶振 | FCT-2M | 32.768 kHz | 12.5pF | -40°C ~ 125°C |
| FCT2M03276809S3 | Fuji晶振 | FCT-2M | 32.768 kHz | 9pF | -20°C ~ 75°C |
| FCT2M03276806E3 | Fuji晶振 | FCT-2M | 32.768 kHz | 6pF | -20°C ~ 70°C |
| FCT2M03276804T3 | Fuji晶振 | FCT-2M | 32.768 kHz | 4pF | -30°C ~ 85°C |
| FCT2M03276809D6 | Fuji晶振 | FCT-2M | 32.768 kHz | 9pF | -10°C ~ 70°C |
| FCT2M03276806T6 | Fuji晶振 | FCT-2M | 32.768 kHz | 6pF | -30°C ~ 85°C |
| FCT2M03276807T5 | Fuji晶振 | FCT-2M | 32.768 kHz | 7pF | -30°C ~ 85°C |
| FCT2M03276806T3 | Fuji晶振 | FCT-2M | 32.768 kHz | 6pF | -30°C ~ 85°C |
| FCT2M03276803E3 | Fuji晶振 | FCT-2M | 32.768 kHz | 3pF | -20°C ~ 70°C |
| FCT2M032768C5P3 | Fuji晶振 | FCT-2M | 32.768 kHz | 12.5pF | -10°C ~ 60°C |
| FCT2M03276803T5 | Fuji晶振 | FCT-2M | 32.768 kHz | 3pF | -30°C ~ 85°C |
| FCT2M03276812U5 | Fuji晶振 | FCT-2M | 32.768 kHz | 12pF | -40°C ~ 105°C |
| FCT2M03276807R6 | Fuji晶振 | FCT-2M | 32.768 kHz | 7pF | -30°C ~ 70°C |
| FCT2M03276807Y1 | Fuji晶振 | FCT-2M | 32.768 kHz | 7pF | -40°C ~ 85°C |
| FCT2M03276805D3 | Fuji晶振 | FCT-2M | 32.768 kHz | 5pF | -10°C ~ 70°C |
| FCT2M03276809D1 | Fuji晶振 | FCT-2M | 32.768 kHz | 9pF | -10°C ~ 70°C |
| FCT2M03276807D6 | Fuji晶振 | FCT-2M | 32.768 kHz | 7pF | -10°C ~ 70°C |
| FCT2M03276812W6 | Fuji晶振 | FCT-2M | 32.768 kHz | 12pF | 0°C ~ 70°C |
| FCT2M03276807S6 | Fuji晶振 | FCT-2M | 32.768 kHz | 7pF | -20°C ~ 75°C |
| FCT2M03276803Y5 | Fuji晶振 | FCT-2M | 32.768 kHz | 3pF | -40°C ~ 85°C |
| FCT2M03276812P5 | Fuji晶振 | FCT-2M | 32.768 kHz | 12pF | -10°C ~ 60°C |
| FCT2M03276809T3 | Fuji晶振 | FCT-2M | 32.768 kHz | 9pF | -30°C ~ 85°C |
| FCT2M03276807W6 | Fuji晶振 | FCT-2M | 32.768 kHz | 7pF | 0°C ~ 70°C |
