- 編號：13353083
- 頻率：32.768KHz
- 尺寸：2*6
富士晶振,遙遙領先的無人機晶振,FCT2T03276806P1插件晶振
富士晶振,遙遙領先的無人機晶振,FCT2T03276806P1插件晶振,富士晶振公司，F(xiàn)uji晶振，6G通訊終端晶振，高精度晶振，圓柱晶振，2*6晶振，石英晶振，二腳晶振，無源晶振，音叉晶體，KHz晶振，插件晶振，6G通訊專用晶振，6...
.jpg)

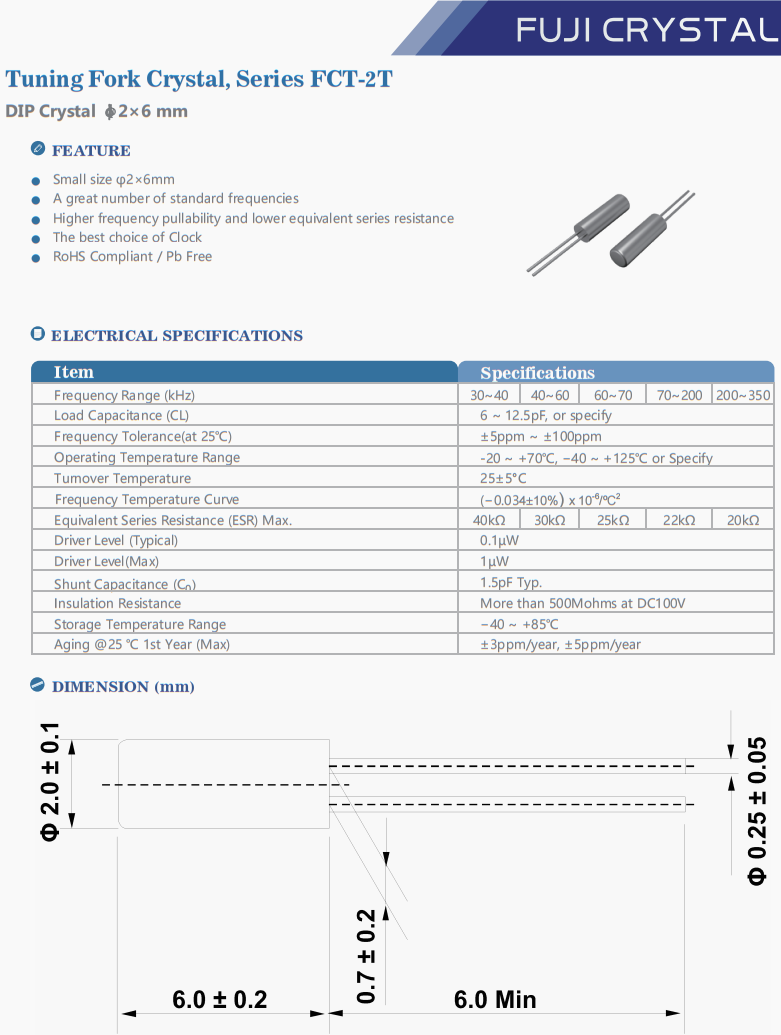

富士晶振,遙遙領先的無人機晶振,FCT2T03276806P1插件晶振,富士晶振公司，F(xiàn)uji晶振，6G通訊終端晶振，高精度晶振，圓柱晶振，2*6晶振，石英晶振，二腳晶振，無源晶振，音叉晶體，KHz晶振，插件晶振，6G通訊專用晶振，6G路由i去晶振，高品質晶振，F(xiàn)CT-2T晶振，小尺寸φ2×6mm，大量的標準頻率，更高的頻率可拉性和更低的等效串聯電阻，鐘表的最佳選擇，符合RoHS標準/無鉛
.gif)
富士晶振,遙遙領先的無人機晶振,FCT2T03276806P1插件晶振
| 電氣參數 | UNITS | MIN. | TYP. | MAX. | REMARKS | |
| 頻率范圍 | MHz | 12 | 70 | AT-Cut Fundamental. | ||
| 60 | 170 | 3rd Overtone. | ||||
| 頻率容差 | ppm | 10 | 10 | See part numbering guide for options. | ||
| 頻率偏差度 | ppm | 10 | 10 | See part numbering guide for options. | ||
| 老化 | 2 | 2 | First year @ +25ºC. | |||
| 工作溫度 | ºC | 40 | 85 | See part numbering guide for options. | ||
| 儲存溫度 | ºC | 40 | 125 | |||
| 負載電容 | pF | 7 | 32 | See part numbering guide for options. | ||
| 并聯電容 | pF | 5 | ||||
| 驅動電平 | µW | 10 | 100 | |||
| 絕緣電阻 | M歐姆 | 500 | @ 100VDC ± 15V. | |||
| 等效串聯電阻 | 12.000MHz ~ 15.999MHz | 歐姆 | 100 | AT-Cut Fundamental. | ||
| 16.000MHz ~ 19.999MHz | 70 | AT-Cut Fundamental. | ||||
| 20.000MHz ~ 29.999MHz | 50 | AT-Cut Fundamental. | ||||
| 30.000MHz ~ 49.999MHz | 40 | AT-Cut Fundamental. | ||||
| 50.000MHz ~ 70.000MHz | 35 | AT-Cut Fundamental. | ||||
| 60.000MHz ~ 170.00MHz | 80 | 3rd Overtone. | ||||
.gif)
富士晶振,遙遙領先的無人機晶振,FCT2T03276806P1插件晶振
| 原廠編碼 | 生產商 | 型號 | 頻率 | 負載電容 | 工作溫度 |
| FCT2T032768C5T3 | Fuji晶振 | FCT-2T | 32.768 kHz | 12.5pF | -30°C ~ 85°C |
| FCT2T032768C5R3 | Fuji晶振 | FCT-2T | 32.768 kHz | 12.5pF | -30°C ~ 70°C |
| FCT2T032768C5Y3 | Fuji晶振 | FCT-2T | 32.768 kHz | 12.5pF | -40°C ~ 85°C |
| FCT2T032768C5E3 | Fuji晶振 | FCT-2T | 32.768 kHz | 12.5pF | -20°C ~ 70°C |
| FCT2T032768C5D3 | Fuji晶振 | FCT-2T | 32.768 kHz | 12.5pF | -10°C ~ 70°C |
| FCT2T032768C5P3 | Fuji晶振 | FCT-2T | 32.768 kHz | 12.5pF | -10°C ~ 60°C |
| FCT2T032768C5W3 | Fuji晶振 | FCT-2T | 32.768 kHz | 12.5pF | 0°C ~ 70°C |
| FCT2T03276806D3 | Fuji晶振 | FCT-2T | 32.768 kHz | 6pF | -10°C ~ 70°C |
| FCT2T032768C5W1 | Fuji晶振 | FCT-2T | 32.768 kHz | 12.5pF | 0°C ~ 70°C |
| FCT2T03276809E1 | Fuji晶振 | FCT-2T | 32.768 kHz | 9pF | -20°C ~ 70°C |
| FCT2T03276806P1 | Fuji晶振 | FCT-2T | 32.768 kHz | 6pF | -10°C ~ 60°C |
| FCT2T03276808R1 | Fuji晶振 | FCT-2T | 32.768 kHz | 8pF | -30°C ~ 70°C |
| FCT2T03276807P1 | Fuji晶振 | FCT-2T | 32.768 kHz | 7pF | -10°C ~ 60°C |
| FCT2T03276809R1 | Fuji晶振 | FCT-2T | 32.768 kHz | 9pF | -30°C ~ 70°C |
| FCT2T03276808E1 | Fuji晶振 | FCT-2T | 32.768 kHz | 8pF | -20°C ~ 70°C |
| FCT2T03276807T1 | Fuji晶振 | FCT-2T | 32.768 kHz | 7pF | -30°C ~ 85°C |
| FCT2T03276808P1 | Fuji晶振 | FCT-2T | 32.768 kHz | 8pF | -10°C ~ 60°C |
| FCT2T03276808T1 | Fuji晶振 | FCT-2T | 32.768 kHz | 8pF | -30°C ~ 85°C |
| FCT2T03276807W1 | Fuji晶振 | FCT-2T | 32.768 kHz | 7pF | 0°C ~ 70°C |
| FCT2T03276806T1 | Fuji晶振 | FCT-2T | 32.768 kHz | 6pF | -30°C ~ 85°C |
| FCT2T03276806W1 | Fuji晶振 | FCT-2T | 32.768 kHz | 6pF | 0°C ~ 70°C |
| FCT2T03276807R1 | Fuji晶振 | FCT-2T | 32.768 kHz | 7pF | -30°C ~ 70°C |
| FCT2T03276809P1 | Fuji晶振 | FCT-2T | 32.768 kHz | 9pF | -10°C ~ 60°C |
| FCT2T03276809Y1 | Fuji晶振 | FCT-2T | 32.768 kHz | 9pF | -40°C ~ 85°C |
| FCT2T03276809D1 | Fuji晶振 | FCT-2T | 32.768 kHz | 9pF | -10°C ~ 70°C |
| FCT2T03276806R1 | Fuji晶振 | FCT-2T | 32.768 kHz | 6pF | -30°C ~ 70°C |
| FCT2T03276807E1 | Fuji晶振 | FCT-2T | 32.768 kHz | 7pF | -20°C ~ 70°C |
| FCT2T03276807Y1 | Fuji晶振 | FCT-2T | 32.768 kHz | 7pF | -40°C ~ 85°C |
| FCT2T03276809T1 | Fuji晶振 | FCT-2T | 32.768 kHz | 9pF | -30°C ~ 85°C |
| FCT2T03276808W1 | Fuji晶振 | FCT-2T | 32.768 kHz | 8pF | 0°C ~ 70°C |
| FCT2T03276808Y1 | Fuji晶振 | FCT-2T | 32.768 kHz | 8pF | -40°C ~ 85°C |
| FCT2T03276809W1 | Fuji晶振 | FCT-2T | 32.768 kHz | 9pF | 0°C ~ 70°C |
| FCT2T03276806Y1 | Fuji晶振 | FCT-2T | 32.768 kHz | 6pF | -40°C ~ 85°C |
| FCT2T03276807D1 | Fuji晶振 | FCT-2T | 32.768 kHz | 7pF | -10°C ~ 70°C |
| FCT2T03276808D1 | Fuji晶振 | FCT-2T | 32.768 kHz | 8pF | -10°C ~ 70°C |
| FCT2T03276806E1 | Fuji晶振 | FCT-2T | 32.768 kHz | 6pF | -20°C ~ 70°C |
| FCT2T03276806D1 | Fuji晶振 | FCT-2T | 32.768 kHz | 6pF | -10°C ~ 70°C |
| FCT2T03276809W3 | Fuji晶振 | FCT-2T | 32.768 kHz | 9pF | 0°C ~ 70°C |
| FCT2T03276807Y3 | Fuji晶振 | FCT-2T | 32.768 kHz | 7pF | -40°C ~ 85°C |
| FCT2T03276806Y3 | Fuji晶振 | FCT-2T | 32.768 kHz | 6pF | -40°C ~ 85°C |
| FCT2T03276807W3 | Fuji晶振 | FCT-2T | 32.768 kHz | 7pF | 0°C ~ 70°C |
| FCT2T03276808W3 | Fuji晶振 | FCT-2T | 32.768 kHz | 8pF | 0°C ~ 70°C |
| FCT2T03276807D3 | Fuji晶振 | FCT-2T | 32.768 kHz | 7pF | -10°C ~ 70°C |
| FCT2T032768C5T1 | Fuji晶振 | FCT-2T | 32.768 kHz | 12.5pF | -30°C ~ 85°C |
| FCT2T03276809T3 | Fuji晶振 | FCT-2T | 32.768 kHz | 9pF | -30°C ~ 85°C |
| FCT2T03276806R3 | Fuji晶振 | FCT-2T | 32.768 kHz | 6pF | -30°C ~ 70°C |
| FCT2T03276806T3 | Fuji晶振 | FCT-2T | 32.768 kHz | 6pF | -30°C ~ 85°C |
| FCT2T03276809D3 | Fuji晶振 | FCT-2T | 32.768 kHz | 9pF | -10°C ~ 70°C |
| FCT2T03276808P3 | Fuji晶振 | FCT-2T | 32.768 kHz | 8pF | -10°C ~ 60°C |
| FCT2T032768C5Y1 | Fuji晶振 | FCT-2T | 32.768 kHz | 12.5pF | -40°C ~ 85°C |
| FCT2T03276809Y3 | Fuji晶振 | FCT-2T | 32.768 kHz | 9pF | -40°C ~ 85°C |
| FCT2T032768C5D1 | Fuji晶振 | FCT-2T | 32.768 kHz | 12.5pF | -10°C ~ 70°C |
| FCT2T03276809P3 | Fuji晶振 | FCT-2T | 32.768 kHz | 9pF | -10°C ~ 60°C |
| FCT2T03276807E3 | Fuji晶振 | FCT-2T | 32.768 kHz | 7pF | -20°C ~ 70°C |
| FCT2T032768C5R1 | Fuji晶振 | FCT-2T | 32.768 kHz | 12.5pF | -30°C ~ 70°C |
| FCT2T03276809E3 | Fuji晶振 | FCT-2T | 32.768 kHz | 9pF | -20°C ~ 70°C |
| FCT2T03276807T3 | Fuji晶振 | FCT-2T | 32.768 kHz | 7pF | -30°C ~ 85°C |
| FCT2T03276808E3 | Fuji晶振 | FCT-2T | 32.768 kHz | 8pF | -20°C ~ 70°C |
| FCT2T032768C5E1 | Fuji晶振 | FCT-2T | 32.768 kHz | 12.5pF | -20°C ~ 70°C |
| FCT2T03276806E3 | Fuji晶振 | FCT-2T | 32.768 kHz | 6pF | -20°C ~ 70°C |
| FCT2T03276808Y3 | Fuji晶振 | FCT-2T | 32.768 kHz | 8pF | -40°C ~ 85°C |
| FCT2T03276807R3 | Fuji晶振 | FCT-2T | 32.768 kHz | 7pF | -30°C ~ 70°C |
| FCT2T03276806P3 | Fuji晶振 | FCT-2T | 32.768 kHz | 6pF | -10°C ~ 60°C |
| FCT2T03276806W3 | Fuji晶振 | FCT-2T | 32.768 kHz | 6pF | 0°C ~ 70°C |
