- 編號：12957690
- 頻率：24.576MHZ
- 尺寸：3.2*2.5mm
CX3225GB24576D0HPQCC,CX3225GB,數字家電,3225mm,24.576MHZ

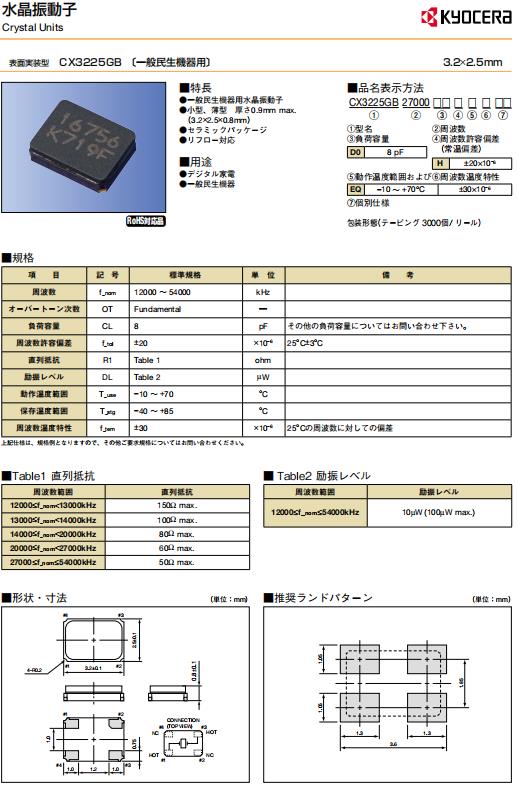

CX3225GB24576D0HPQCC,CX3225GB,數字家電,3225mm,24.576MHZ，尺寸3225mm,頻率為24.576MHZ，工作溫度為-40C~+85C，日本京瓷晶振，Kyocera晶振，進口貼片晶振，無源諧振器，貼片晶振，陶瓷晶振，陶瓷諧振器，小體積晶振...
.jpg)
CX3225GB24576D0HPQCC,CX3225GB,數字家電,3225mm,24.576MHZ，尺寸3225mm,頻率為24.576MHZ，工作溫度為-40°C~+85°C，日本京瓷晶振，Kyocera晶振，進口貼片晶振，無源諧振器，貼片晶振，陶瓷晶振，陶瓷諧振器，小體積晶振，高質量晶振，低損耗晶振，數碼家電專用晶振，普通民用設備晶振，CX3225GB24000P0HPQCC貼片晶振，CX3225GB25000D0HEQCC進口晶振.
貼片無源晶體產品主要應用范圍：數碼家電，普通民用設備，智能家居，藍牙音響，儀器設備，無線網絡等領域。CX3225GB24576D0HPQCC,CX3225GB,數字家電,3225mm,24.576MHZ.
貼片無源晶體產品主要應用范圍：數碼家電，普通民用設備，智能家居，藍牙音響，儀器設備，無線網絡等領域。CX3225GB24576D0HPQCC,CX3225GB,數字家電,3225mm,24.576MHZ.
.gif)
CX3225GB24576D0HPQCC,CX3225GB,數字家電,3225mm,24.576MHZ 參數表
| 項 目 | 記 號 | 標準規格 | 単 位 | 備 考 | ||||||||
| 頻率 | f_nom | 12000 ~ 54000 | kHz | |||||||||
| 過音階 | OT | Fundamental | ― | |||||||||
| 負荷容量 | CL | 8 | pF | 關于其他的負荷容量請咨詢。 | ||||||||
| 頻率容許偏差 | f_tol | ±20 | × 10−6 | 25°C±3°C | ||||||||
| 直列抵抗 | R1 | Table 1 | ohm | |||||||||
| 激勵水平 | DL | Table 2 |
 W |
|||||||||
| 工作溫度范圍 | T_use | − 10 ~ +70 | °C | |||||||||
| 保持穩定范圍 | T_stg | −40 ~ +85 | °C | |||||||||
| 頻率溫度特性 | f_tem | ±30 | × 10−6 | 相對于25°C頻率的偏差 | ||||||||
.gif)

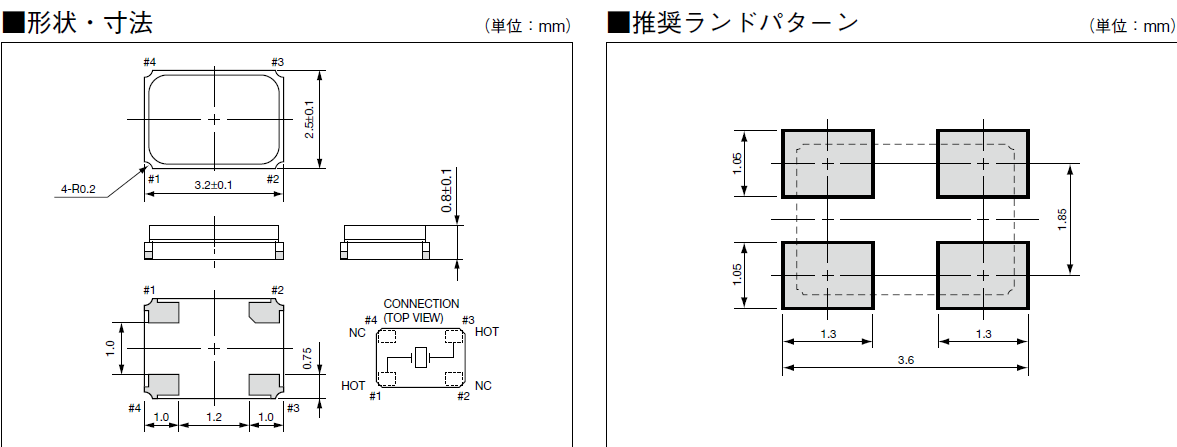

CX3225GB24576D0HPQCC,CX3225GB,數字家電,3225mm,24.576MHZ 尺寸圖
CX3225GB24576D0HPQCC晶振特征：
普通民用機器水晶振蕩器
●體積小，超薄厚度0.9mm max。
(3.2×2.5×0.8毫米)
●陶瓷封裝
●應對回流
更多相關京瓷晶振型號| 原廠編碼 | 廠家 | 型號 | 系列 | 頻率 | 工作溫度 |
| CX3225GB12000H0KPSC1 | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 12MHz | -40°C ~ 85°C |
| CX3225GB16000D0HEQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 16MHz | -10°C ~ 70°C |
| CX3225GB24000D0HEQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 24MHz | -10°C ~ 70°C |
| CX3225GB12000P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 12MHz | -40°C ~ 85°C |
| CX3225GB16000P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 16MHz | -40°C ~ 85°C |
| CX3225GB49152P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 49.152MHz | -40°C ~ 85°C |
| CX3225GB18432D0HEQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 18.432MHz | -10°C ~ 70°C |
| CX3225GB20000D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 20MHz | -40°C ~ 85°C |
| CX3225GB13560P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 13.56MHz | -40°C ~ 85°C |
| CX3225GB19200P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 19.2MHz | -40°C ~ 85°C |
| CX3225GB22579P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 22.5792MHz | -40°C ~ 85°C |
| CX3225GB27000P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 27MHz | -40°C ~ 85°C |
| CX3225GB14745D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 14.7456MHz | -40°C ~ 85°C |
| CX3225GB12000D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 12MHz | -40°C ~ 85°C |
| CX3225GB24000P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 24MHz | -40°C ~ 85°C |
| CX3225GB12000D0HEQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 12MHz | -10°C ~ 70°C |
| CX3225GB27000D0HEQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 27MHz | -10°C ~ 70°C |
| CX3225GB25000D0HEQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 25MHz | -10°C ~ 70°C |
| CX3225GB25000D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 25MHz | -40°C ~ 85°C |
| CX3225GB33333P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 33.333MHz | -40°C ~ 85°C |
| CX3225GB24576D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 24.576MHz | -40°C ~ 85°C |
| CX3225GB14745P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 14.7456MHz | -40°C ~ 85°C |
| CX3225GB36000P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 36MHz | -40°C ~ 85°C |
| CX3225GB12288P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 12.288MHz | -40°C ~ 85°C |
| CX3225GB38400D0HEQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 38.4MHz | -10°C ~ 70°C |
| CX3225GB14745D0HEQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 14.7456MHz | -10°C ~ 70°C |
| CX3225GB54000D0HEQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 54MHz | -10°C ~ 70°C |
| CX3225GB24576D0HEQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 24.576MHz | -10°C ~ 70°C |
| CX3225GB30000D0HEQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 30MHz | -10°C ~ 70°C |
| CX3225GB13560D0HEQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 13.56MHz | -10°C ~ 70°C |
| CX3225GB19200D0HEQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 19.2MHz | -10°C ~ 70°C |
| CX3225GB33333D0HEQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 33.333MHz | -10°C ~ 70°C |
| CX3225GB40000D0HEQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 40MHz | -10°C ~ 70°C |
| CX3225GB20000D0HEQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 20MHz | -10°C ~ 70°C |
| CX3225GB38400P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 38.4MHz | -40°C ~ 85°C |
| CX3225GB54000D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 54MHz | -40°C ~ 85°C |
| CX3225GB14318D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 14.31818MHz | -40°C ~ 85°C |
| CX3225GB16384P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 16.384MHz | -40°C ~ 85°C |
| CX3225GB40000D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 40MHz | -40°C ~ 85°C |
| CX3225GB54000P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 54MHz | -40°C ~ 85°C |
| CX3225GB38400D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 38.4MHz | -40°C ~ 85°C |
| CX3225GB18432P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 18.432MHz | -40°C ~ 85°C |
| CX3225GB19200D0HPQCC | AVX Corp/Kyocera Corp | 3225mm貼片晶振 | MHz Crystal | 19.2MHz | -40°C ~ 85°C |
| CX3225GB18432D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 18.432MHz | -40°C ~ 85°C |
| CX3225GB27000D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 27MHz | -40°C ~ 85°C |
| CX3225GB48000P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 48MHz | -40°C ~ 85°C |
| CX3225GB32000P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 32MHz | -40°C ~ 85°C |
| CX3225GB30000D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 30MHz | -40°C ~ 85°C |
| CX3225GB33333D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 33.333MHz | -40°C ~ 85°C |
| CX3225GB25000P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 25MHz | -40°C ~ 85°C |
| CX3225GB14318P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 14.31818MHz | -40°C ~ 85°C |
| CX3225GB10000D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 10MHz | -40°C ~ 85°C |
| CX3225GB20000P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 20MHz | -40°C ~ 85°C |
| CX3225GB10000P0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 10MHz | -40°C ~ 85°C |
| CX3225GB48000D0HPQCC | AVX Corp/Kyocera Corp | CX3225GB, Kyocera | MHz Crystal | 48MHz | -40°C ~ 85°C |
