首頁臺產晶振 TXC晶振TXC臺產晶振,AA-14.31818MAGD-T晶振,汽車空調系統晶振

TXC臺產晶振,AA-14.31818MAGD-T晶振,汽車空調系統晶振

編號：23260758
頻率：14.31818MHz
尺寸：5032

TXC臺產晶振,AA-14.31818MAGD-T晶振,汽車空調系統晶振，AA系列SMD，玻璃密封晶體，5.0x3.2x1.2mm，功能。緊湊的玻璃密封SMD晶體單元。工作溫度范圍廣。在惡劣環境下性能優越可靠。不受Rohs指令限制的密封玻璃含鉛。臺...

分享到

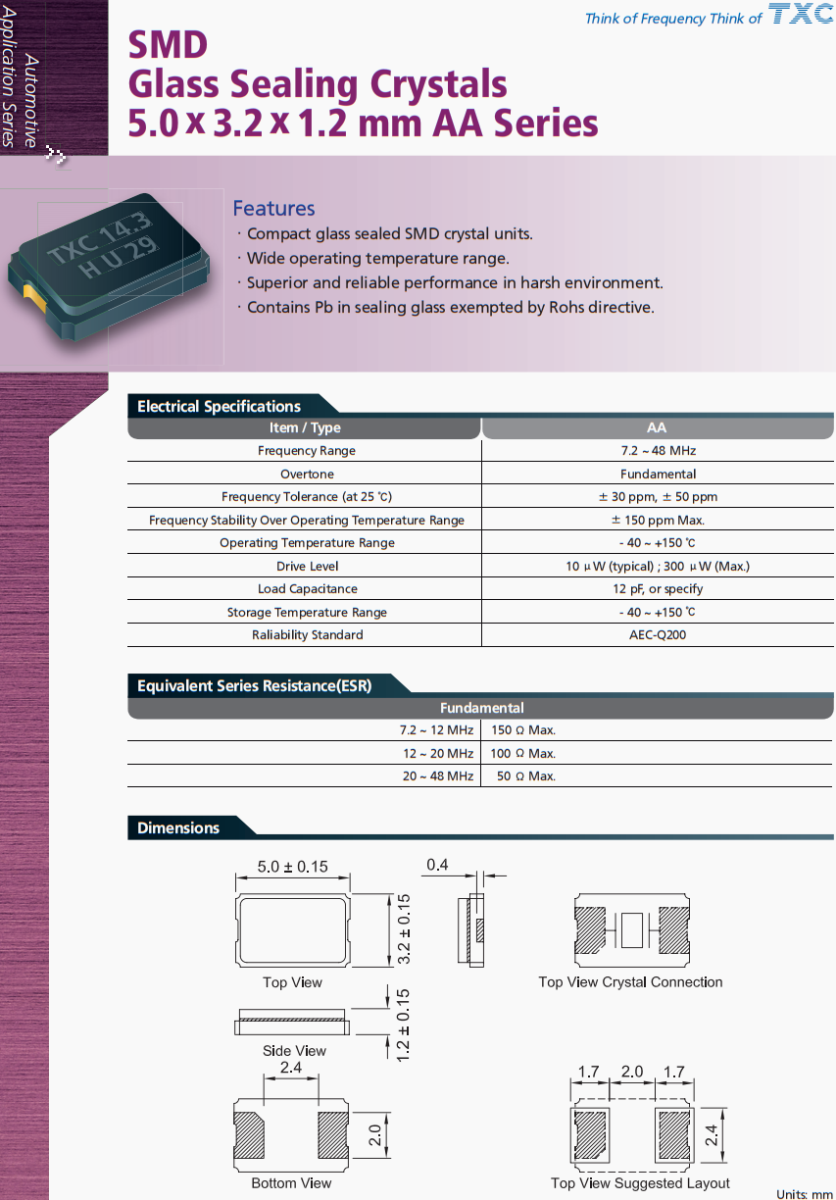

TXC臺產晶振,AA-14.31818MAGD-T晶振,汽車空調系統晶振，AA系列SMD，玻璃密封晶體，5.0 x 3.2 x 1.2 mm ，功能。緊湊的玻璃密封SMD晶體單元。工作溫度范圍廣。在惡劣環境下性能優越可靠。不受Rohs指令限制的密封玻璃含鉛。臺灣TXC晶振公司，晶技晶振，無源晶振，5032晶振，AA-8.000MALV-T晶振，汽車晶振，汽車電動天窗控制系統晶振，臺灣晶振，貼片晶振，二腳晶振，石英晶振，高品質晶振，車載多媒體晶振，行車記錄儀晶振，低損耗晶振，耐高溫晶振，耐沖擊晶振

TXC臺產晶振,AA-14.31818MAGD-T晶振,汽車空調系統晶振

型號	AA
頻率范圍	7.2 ~ 48 MHz
工作模式	Fundamental
頻率容差	± 30 ppm, ± 50 ppm
溫度范圍內的頻率穩定度	± 150 ppm Max.
工作溫度	- 40 ~ +150 ℃
驅動電平	10 μW (typical) ; 300 μW (Max.)
負載電容	12 pF, or specify
儲存溫度范圍	- 40 ~ +150 ℃
可靠性標準	AEC-Q200

TXC臺產晶振,AA-14.31818MAGD-T晶振,汽車空調系統晶振

TXC原廠編碼	生產商品牌	型號	頻率	頻率穩定度	頻率容差	負載電容
AA-8.000MALV-T	TXC晶振	AA	8MHz	±150ppm	±30ppm	8pF
AA-8.192MAGE-T	TXC晶振	AA	8.192MHz	±50ppm	±30ppm	12pF
AA-25.000MALE-T	TXC晶振	AA	25MHz	±150ppm	±30ppm	12pF
AA-16.000MALE-T	TXC晶振	AA	16MHz	±150ppm	±30ppm	12pF
AA-12.000MAGE-T	TXC晶振	AA	12MHz	±50ppm	±30ppm	12pF
AA-10.000MAGY-T	TXC晶振	AA	10MHz	±50ppm	±30ppm	7pF
AA-28.63636MAGK-T	TXC晶振	AA	28.63636MHz	±50ppm	±30ppm	20pF
AA-14.31818MAGD-T	TXC晶振	AA	14.31818MHz	±50ppm	±30ppm	11pF
AA-20.000MAGE-T	TXC晶振	AA	20MHz	±50ppm	±30ppm	12pF
AA-27.000MAGK-T	TXC晶振	AA	27MHz	±50ppm	±30ppm	20pF
AA-37.050MAGV-T	TXC晶振	AA	37.05MHz	±50ppm	±30ppm	8pF
AA-12.288MAGV-T	TXC晶振	AA	12.288MHz	±50ppm	±30ppm	8pF
AA-10.000MAGE-T	TXC晶振	AA	10MHz	±50ppm	±30ppm	12pF
AA-10.000MAME-T	TXC晶振	AA	10MHz	±100ppm	±30ppm	12pF
AA-12.000MAHE-T	TXC晶振	AA	12MHz	±30ppm	±30ppm	12pF
AA-12.000MAPQ-T	TXC晶振	AA	12MHz	±50ppm	±30ppm	10pF
AA-13.4916MAHQ-T	TXC晶振	AA	13.4916MHz	±30ppm	±30ppm	10pF
AA-14.31818MAGK-T	TXC晶振	AA	14.31818MHz	±50ppm	±30ppm	20pF
AA-16.000MAME-T	TXC晶振	AA	16MHz	±100ppm	±30ppm	12pF
AA-16.000MBNV-T	TXC晶振	AA	16MHz	±50ppm	±50ppm	8pF
AA-20.000MAHE-T	TXC晶振	AA	20MHz	±30ppm	±30ppm	12pF
AA-20.000MALE-T	TXC晶振	AA	20MHz	±150ppm	±30ppm	12pF
AA-20.000MBNV-T	TXC晶振	AA	20MHz	±50ppm	±50ppm	8pF
AA-24.000MAHJ-T	TXC晶振	AA	24MHz	±30ppm	±30ppm	18pF
AA-24.000MDHK-T	TXC晶振	AA	24MHz	±30ppm	±20ppm	20pF
AA-25.000MANK-T	TXC晶振	AA	25MHz	±50ppm	±30ppm	20pF
AA-27.000MAHQ-T	TXC晶振	AA	27MHz	±30ppm	±30ppm	10pF
AA-48.000MAHE-T	TXC晶振	AA	48MHz	±30ppm	±30ppm	12pF
AA-7.200MBOE-T	TXC晶振	AA	7.2MHz	±100ppm	±50ppm	12pF
AA-8.000MAGJ-T	TXC晶振	AA	8MHz	±50ppm	±30ppm	18pF
AA-8.000MAHI-T	TXC晶振	AA	8MHz	±30ppm	±30ppm	16pF
AA-8.000MAHQ-T	TXC晶振	AA	8MHz	±30ppm	±30ppm	10pF
AA-8.000MAME-T	TXC晶振	AA	8MHz	±100ppm	±30ppm	12pF
AA-8.000MAMJ-T	TXC晶振	AA	8MHz	±100ppm	±30ppm	18pF
AA-8.000MAMV-T	TXC晶振	AA	8MHz	±100ppm	±30ppm	8pF
AA-8.000MBOV-T	TXC晶振	AA	8MHz	±100ppm	±50ppm	8pF
AA-8.000MDHV-T	TXC晶振	AA	8MHz	±30ppm	±20ppm	8pF
AA-8.000MDMK-T	TXC晶振	AA	8MHz	±100ppm	±20ppm	20pF
AA-8.192MALE-T	TXC晶振	AA	8.192MHz	±150ppm	±30ppm	12pF
AA-9.000MAHV-T	TXC晶振	AA	9MHz	±30ppm	±30ppm	8pF
AA-9.216MAHH-T	TXC晶振	AA	9.216MHz	±30ppm	±30ppm	15pF
AA-9.216MAHQ-T	TXC晶振	AA	9.216MHz	±30ppm	±30ppm	10pF
AA-9.84375MAHE-T	TXC晶振	AA	9.8435MHz	±30ppm	±30ppm	12pF
