ECS晶振在ECS-2520MVQ MultiVolt中發布了一個額外的零件號銩提供擴展溫度范圍的石英晶體振蕩器系列。ECS-2520MVQ-1250-BS-TR是一款125MHz AEC-Q200 SMD多電壓晶體振蕩器，在-40°C至+125°C的擴展溫度范圍內具有50ppm的穩定性。該電子元件可以在1.8V、2.0V、3.0V或3.3V的靜態電源下工作，電源電壓范圍為1.6V至3.3V。

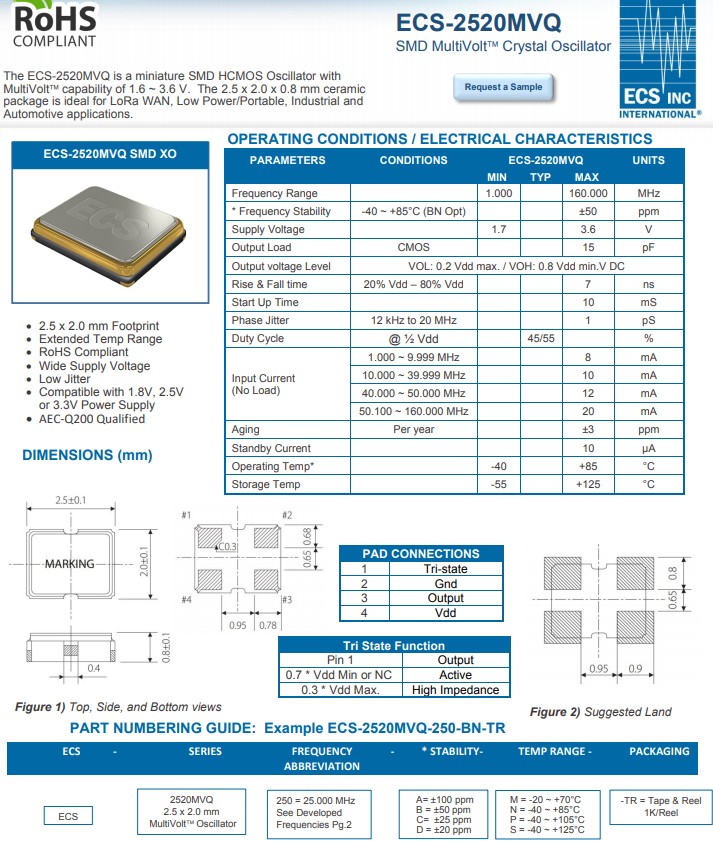

ECS的ECS-2520MVQ是一款A(yù)EC-Q200 SMD多電壓晶振系列，采用2.5mmx2.0mmx0.8mm 四腳貼片晶振陶瓷封裝。該器件提供1MHz~160MHz的頻率范圍和50ppm的標準穩定性，以及20ppm、25ppm和100ppm的額外穩定性選項。“CN”選項在-40°C～+85°C的標準工業溫度范圍內提供25ppm的穩定性。該振蕩器系列通過了AEC-Q200認證和IATF 16949認證，并提供擴展的溫度范圍。多伏特銩晶體振蕩器與靜態1.8V、2.0V、3.0V和3.3V電源兼容，并可在1.6V ~ 3.3V電源范圍內工作，ECS-2520MVQ-1250-BS-TR多電壓晶振非常適合汽車和物聯網應用。

圖像	零件號碼	頻率	頻率穩定度
	ECS-2520MVQ-1250-BS-TR	125MHz	50ppm
	ECS-2520MVQ-250-BS-TR	25MHz	50ppm
	ECS-2520MVQ-800-BN-TR	80MHz	25ppm
	ECS-2520MVQ-320-CN-TR	32MHz	25ppm
	ECS-2520MVQ-120-BP-TR	12MHz	50ppm
	ECS-2520MVQ-240-BP-TR	24MHz	50ppm
	ECS-2520MVQ-250-CN-TR	25MHz	25ppm
	ECS-2520MVQ-250-BP-TR	25MHz	50ppm

原廠代碼	ECS晶振	型號	頻率	工作溫度
ECS-2520S25-240-FN-TR	ECS Crystal	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S25-240-FN-TR	ECS Crystal	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S25-240-FN-TR	ECS Crystal	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S25-500-FN-TR	ECS Crystal	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S25-500-FN-TR	ECS Crystal	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S25-500-FN-TR	ECS Crystal	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S18-100-FN-TR	ECS Crystal	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S18-100-FN-TR	ECS Crystal	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S18-100-FN-TR	ECS Crystal	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S18-120-FN-TR	ECS Crystal	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-2520S18-120-FN-TR	ECS Crystal	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-2520S18-120-FN-TR	ECS Crystal	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-2520S18-160-FN-TR	ECS Crystal	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S18-160-FN-TR	ECS Crystal	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S18-160-FN-TR	ECS Crystal	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S18-240-FN-TR	ECS Crystal	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S18-240-FN-TR	ECS Crystal	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S18-240-FN-TR	ECS Crystal	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S18-250-FN-TR	ECS Crystal	ECS-2520S	25MHz	-40°C ~ 85°C
ECS-2520S18-250-FN-TR	ECS Crystal	ECS-2520S	25MHz	-40°C ~ 85°C
ECS-2520S18-250-FN-TR	ECS Crystal	ECS-2520S	25MHz	-40°C ~ 85°C
ECS-2520S18-260-FN-TR	ECS Crystal	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S18-260-FN-TR	ECS Crystal	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S18-260-FN-TR	ECS Crystal	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S18-320-FN-TR	ECS Crystal	ECS-2520S	32MHz	-40°C ~ 85°C
ECS-2520S18-320-FN-TR	ECS Crystal	ECS-2520S	32MHz	-40°C ~ 85°C
ECS-2520S18-320-FN-TR	ECS Crystal	ECS-2520S	32MHz	-40°C ~ 85°C
ECS-2520S18-400-FN-TR	ECS Crystal	ECS-2520S	40MHz	-40°C ~ 85°C
ECS-2520S18-400-FN-TR	ECS Crystal	ECS-2520S	40MHz	-40°C ~ 85°C
ECS-2520S18-400-FN-TR	ECS Crystal	ECS-2520S	40MHz	-40°C ~ 85°C
ECS-2520S18-500-FN-TR	ECS Crystal	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S18-500-FN-TR	ECS Crystal	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S18-500-FN-TR	ECS Crystal	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S33-100-FN-TR	ECS Crystal	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S33-100-FN-TR	ECS Crystal	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S33-100-FN-TR	ECS Crystal	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S33-400-FN-TR	ECS Crystal	ECS-2520S	40MHz	-40°C ~ 85°C
ECS-2520S33-400-FN-TR	ECS Crystal	ECS-2520S	40MHz	-40°C ~ 85°C
ECS-2520S33-400-FN-TR	ECS Crystal	ECS-2520S	40MHz	-40°C ~ 85°C
ECS-2520S18-200-FN-TR	ECS Crystal	ECS-2520S	20MHz	-40°C ~ 85°C
ECS-2520S18-200-FN-TR	ECS Crystal	ECS-2520S	20MHz	-40°C ~ 85°C
ECS-2520S18-200-FN-TR	ECS Crystal	ECS-2520S	20MHz	-40°C ~ 85°C
ECS-2520S33-500-FN-TR	ECS Crystal	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S33-500-FN-TR	ECS Crystal	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S33-500-FN-TR	ECS Crystal	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S33-320-FN-TR	ECS Crystal	ECS-2520S	32MHz	-40°C ~ 85°C
ECS-2520S33-320-FN-TR	ECS Crystal	ECS-2520S	32MHz	-40°C ~ 85°C
ECS-2520S33-320-FN-TR	ECS Crystal	ECS-2520S	32MHz	-40°C ~ 85°C
ECS-2520S25-250-FN-TR	ECS Crystal	ECS-2520S	25MHz	-40°C ~ 85°C
ECS-2520S25-250-FN-TR	ECS Crystal	SMD晶振	25MHz	-40°C ~ 85°C
ECS-2520S25-250-FN-TR	ECS Crystal	ECS-2520S	25MHz	-40°C ~ 85°C
ECS-2520S33-240-FN-TR	ECS Crystal	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S33-240-FN-TR	ECS Crystal	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S33-240-FN-TR	ECS Crystal	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S33-160-FN-TR	ECS Crystal	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S33-160-FN-TR	ECS Crystal	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S33-160-FN-TR	ECS Crystal	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S33-200-FN-TR	ECS Crystal	ECS-2520S	20MHz	-40°C ~ 85°C
ECS-2520S33-200-FN-TR	ECS Crystal	ECS-2520S	20MHz	-40°C ~ 85°C
ECS-2520S33-200-FN-TR	ECS Crystal	ECS-2520S	20MHz	-40°C ~ 85°C
ECS-2520S33-260-FN-TR	ECS Crystal	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S33-260-FN-TR	ECS Crystal	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S33-260-FN-TR	ECS Crystal	ECS-2520S	26MHz	-40°C ~ 85°C
