智能電表遠程抄表石英晶體振蕩器Q3805CA10000200，知名日本品牌愛普生公司，憑著自身的信念與努力，不斷鉆研晶振產品，以求應對市場各種各樣的需求，在創新產品上有自身獨特的見解，很高興推出了這款EG-2121CA晶振，差分晶振，石英晶體振蕩器編碼Q3805CA10000200，頻率2.500000兆赫，輸出WaveLVDS，電源電壓2.38 ~ 2.62 V，尺寸(LxWxH)7.00 x 5.00 x 1.20 mm，工作溫度0至+70°C，頻率公差±100ppm，具有高品質，高性能，高精度，低損耗，低抖動等特點,非常適用于智能電表遠程抄表專用，智能穿戴設備設計,EG-2121CA晶振是一款微型封裝，具備可靠性能及優良的耐熱性與耐環境特性,成為電子產品智能穿戴設備時鐘的最佳搭檔。

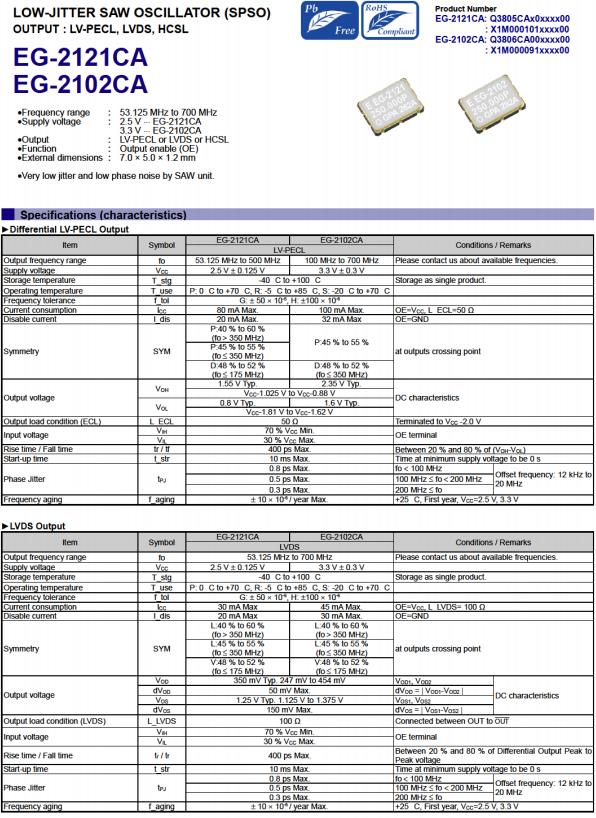

Product Number	Model	Frequency	LxWxH	差分晶振	Supply Voltage	Ope Temperature
Q3805CA00018000	EG-2121CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
Q3805CA00018200	EG-2121CA	148.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
Q3805CA00018300	EG-2121CA	312.510900 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
Q3805CA00018400	EG-2121CA	156.255500 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
Q3805CA00018500	EG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
Q3805CA00018600	EG-2121CA	156.257812 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
Q3805CA00018700	EG-2121CA	300.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
Q3805CA00018800	EG-2121CA	161.132800 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
Q3805CA00018900	EG-2121CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
Q3805CA00019000	EG-2121CA	148.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
Q3805CA00019100	EG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
Q3805CA00019200	EG-2121CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
Q3805CA00019300	EG-2121CA	148.350000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
Q3805CA00019400	EG-2121CA	98.304000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
Q3805CA00019500	EG-2121CA	80.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
Q3805CA00019600	EG-2121CA	85.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10000100	EG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10000200	EG-2121CA	62.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10000300	EG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10000400	EG-2121CA	53.125000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10000500	EG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C

智能電表遠程抄表石英晶體振蕩器Q3805CA10000200，有源晶振是一種比較高端的石英晶振，本身自帶電壓不需要外部接電源，具有高穩定性，低功耗，低相位抖動，低電壓等高級特性。有源晶振的輸出電大、整形,得到圖4所要求的某種標準輸出,驅動負載或后級門電路。這里,還經常路作用是對OSC晶振振蕩獲得的正弦信號進行緩沖、放用到邏輯電平轉換電路和分頻、倍頻電路。

有源晶振應選用穩壓性能好,溫度漂移小的直流電源。輸入電壓變化±5%或±10%時,輸出電壓變化在10~100ppm/℃挑選。常用電源電壓為1.8V、2.5V、3.3V或5V等。
