SMD石英晶體器件選型時一般都要留出一些余量，以保證產品的可靠性。選用較高檔的器件可以進一步降低失效概率，帶來潛在的效益，這一點在比較產品價格的時候也要考慮到。要使振蕩器的“整體性能”趨于平衡、合理，這就需要權衡諸如穩定度、工作溫度范圍、晶體老化效應、相位噪聲、成本等多方面因素，這里的成本不僅僅包含器件的價格，而且包含產品全壽命的使用成本。

Product Number	LxWxH	進口愛普生晶振型號	Frequency	CL Value	Freq.tol. @+25°C	Freq.tol./Temp.range	Temperature range
X1E000021037516	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	9 pF	+/-10 ppm	+/-18 ppm	-40 to +85 °C
X1E000021037716	3.2 x 2.5 x 0.6mm	TSX-3225	39.000000 MHz	8 pF	+/-10 ppm	+/-11 ppm	-20 to +85 °C
X1E000021038416	3.2 x 2.5 x 0.6mm	TSX-3225	27.000000 MHz	11 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
X1E000021039416	3.2 x 2.5 x 0.6mm	TSX-3225	37.800000 MHz	8.5 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C
X1E000021040316	3.2 x 2.5 x 0.6mm	TSX-3225	48.000000 MHz	16 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
X1E000021040816	3.2 x 2.5 x 0.6mm	TSX-3225	33.300000 MHz	9 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
X1E000021041016	3.2 x 2.5 x 0.6mm	TSX-3225	30.000000 MHz	7 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
X1E000021041716	3.2 x 2.5 x 0.6mm	TSX-3225	24.576000 MHz	9 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
X1E000021041816	3.2 x 2.5 x 0.6mm	TSX-3225	20.000000 MHz	9 pF	+/-10 ppm	+/-18 ppm	-40 to +85 °C
X1E000021042116	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	20 pF	+/-10 ppm	+/-18 ppm	-40 to +85 °C
X1E000021042416	3.2 x 2.5 x 0.6mm	TSX-3225	24.576000 MHz	8 pF	+/-15 ppm	+/-15 ppm	-20 to +75 °C
X1E000021042516	3.2 x 2.5 x 0.6mm	TSX-3225	32.000000 MHz	16 pF	+/-10 ppm	+/-16 ppm	-40 to +85 °C
X1E000021042616	3.2 x 2.5 x 0.6mm	TSX-3225	27.000000 MHz	12 pF	+/-10 ppm	+/-18 ppm	-40 to +85 °C
X1E000021042716	3.2 x 2.5 x 0.6mm	TSX-3225	24.576000 MHz	12 pF	+/-10 ppm	+/-18 ppm	-40 to +85 °C
X1E000021043216	3.2 x 2.5 x 0.6mm	TSX-3225	38.400000 MHz	9 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
X1E000021043716	3.2 x 2.5 x 0.6mm	TSX-3225	18.432000 MHz	16 pF	+/-10 ppm	+/-18 ppm	-40 to +85 °C
X1E000021043816	3.2 x 2.5 x 0.6mm	TSX-3225	30.000000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
X1E000021043916	3.2 x 2.5 x 0.6mm	TSX-3225	48.000000 MHz	18 pF	+/-20 ppm	+/-20 ppm	-40 to +85 °C
X1E000021044816	3.2 x 2.5 x 0.6mm	TSX-3225	20.000000 MHz	18 pF	+/-10 ppm	+/-10 ppm	-20 to +85 °C
X1E000021046816	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	18 pF	+/-10 ppm	+/-15 ppm	-20 to +70 °C
X1E000021046916	3.2 x 2.5 x 0.6mm	TSX-3225	18.432000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
X1E000021047716	3.2 x 2.5 x 0.6mm	TSX-3225	31.250000 MHz	9 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
X1E000021048116	3.2 x 2.5 x 0.6mm	TSX-3225	30.000000 MHz	12 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C

編碼X1E000021042116貼片諧振器具備出色的性能用于ISM波段收音機，愛普生晶振公司本著誠信的核心價值觀開展業務，承諾,和創新。作為一個致力于保護人類的全球貿易企業權利，我們認真對待防止現代奴隸制在我們的商業和供應鏈中的責任。我們致力維持最佳做法，并保持警覺，不斷作出改善.

Product Number	LxWxH	進口愛普生晶振型號	Frequency	CL Value	Freq.tol. @+25°C	Freq.tol./Temp.range	Temperature range
X1E000021048316	3.2 x 2.5 x 0.6mm	TSX-3225	20.000000 MHz	12 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C
X1E000021049616	3.2 x 2.5 x 0.6mm	TSX-3225	20.000000 MHz	16 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C
X1E000021050216	3.2 x 2.5 x 0.6mm	TSX-3225	27.120000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
X1E000021050316	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	9 pF	+/-15 ppm	+/-25 ppm	-40 to +85 °C
X1E000021050616	3.2 x 2.5 x 0.6mm	TSX-3225	26.000000 MHz	18 pF	+/-10 ppm	+/-20 ppm	-40 to +105 °C
X1E000021051516	3.2 x 2.5 x 0.6mm	TSX-3225	26.000000 MHz	8 pF	+/-10 ppm	+/-18 ppm	-40 to +85 °C
X1E000021051816	3.2 x 2.5 x 0.6mm	TSX-3225	25.000000 MHz	18 pF	+/-10 ppm	+/-10 ppm	-20 to +85 °C
X1E000021052716	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	18 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
X1E000021056016	3.2 x 2.5 x 0.6mm	TSX-3225	32.000000 MHz	16 pF	+/-10 ppm	+/-15 ppm	-30 to +85 °C
X1E000021057016	3.2 x 2.5 x 0.6mm	TSX-3225	20.000000 MHz	18 pF	+/-10 ppm	+/-18 ppm	-40 to +85 °C
X1E000021057416	3.2 x 2.5 x 0.6mm	TSX-3225	26.635300 MHz	20 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
X1E000021057816	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	8 pF	+/-10 ppm	+/-18 ppm	-40 to +85 °C
X1E000021057916	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	15 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C
X1E000021058116	3.2 x 2.5 x 0.6mm	TSX-3225	20.000000 MHz	10 pF	+/-15 ppm	+/-20 ppm	-40 to +85 °C
X1E000021058216	3.2 x 2.5 x 0.6mm	TSX-3225	20.000000 MHz	12 pF	+/-30 ppm	+/-50 ppm	-40 to +85 °C
X1E000021058616	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	7 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
X1E000021059216	3.2 x 2.5 x 0.6mm	TSX-3225	24.576000 MHz	8 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
X1E000021059316	3.2 x 2.5 x 0.6mm	TSX-3225	32.000000 MHz	7 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
X1E000021059416	3.2 x 2.5 x 0.6mm	TSX-3225	19.200000 MHz	10 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
X1E000021059516	3.2 x 2.5 x 0.6mm	TSX-3225	25.000000 MHz	20 pF	+/-20 ppm	+/-20 ppm	-40 to +85 °C
X1E000021059616	3.2 x 2.5 x 0.6mm	TSX-3225	30.000000 MHz	10 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C

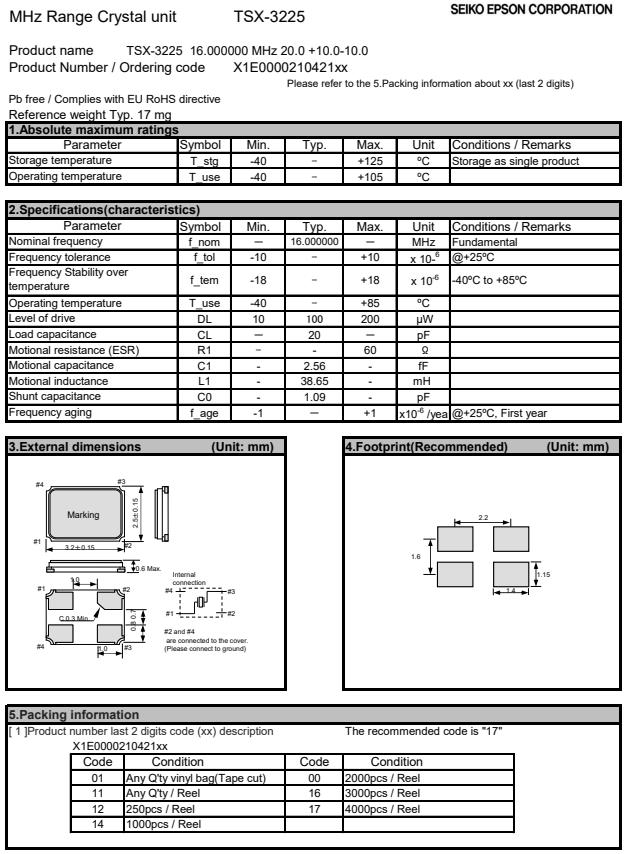

愛普生晶振公司成立至今已有幾十年的發展，這是一家以客戶為中心的知名企業，我們致力于設計、制造、供應和支持高質量、高可靠性的產品。我們采用強大的質量管理體系，包括供應商質量控制和供應鏈安全程序，以便我們能夠始終如一地采購和交付高質量的產品。所推出的TSX-3225貼片晶振，編碼X1E000021042116，頻率16.000000兆赫，尺寸(長×寬×高)3.2 × 2.5 × 0.6 mm，負載電容20pf，頻率公差+ / -10 ppm，特征公差+ / -18 ppm，溫度范圍-40到+85°C，泛音順序:基本音，應用領域:手機，藍牙，無線局域網，ISM波段收音機，MPU時鐘.
