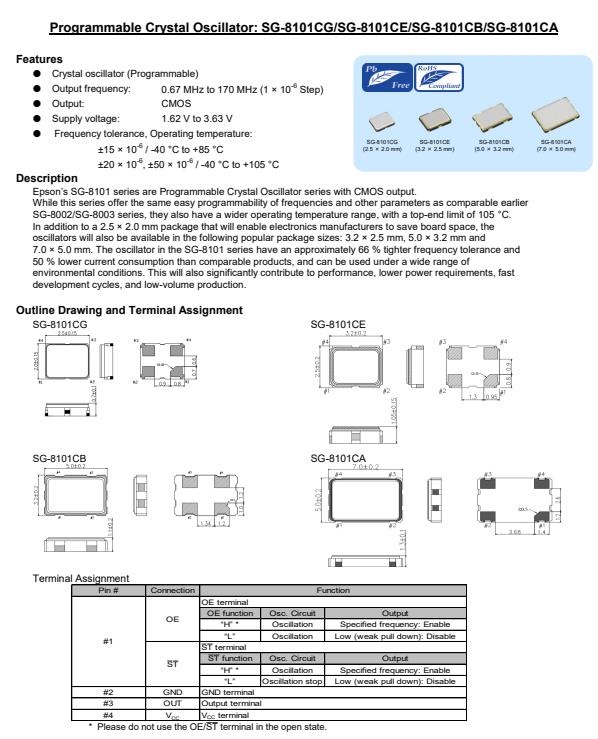

無線模塊應用石英晶體振蕩器X1G005191006400，愛普生公司作為日本品牌知名頻率元器件制造商，擁有自身獨特的優勢，能夠快速針對當下市場給出合理的反饋，又能針對性給出完美解決方案，愛普生經過數月的耐心打磨,終于開發出這款SG-8101CA晶振，編碼X1G005191006400，頻率12.000000兆赫，輸出WaveCMOS，電源電壓1.62 ~ 3.63 V，尺寸(LxWxH)7.00 x 5.00 x 1.40 mm，操作溫度-40至+85°C，頻率公差±15ppm，具有超高的穩定性能以及耐壓性能，具有低損耗，低抖動的特點,非常適用于對設計面積敏感的無線模塊應用進口晶振，智能穿戴設備設計,SG-8101CA晶振其小體積,高精度,低功耗的特性以及優良的耐熱性與耐環境特性,成為智能穿戴設備時鐘的最佳首選。

無線模塊應用石英晶體振蕩器X1G005191006400，愛普生貼片式石英晶振振蕩器,低電壓啟動功率,并且有多種電壓供選擇,比如有1.8V,2.5V,3.3V,3.8V,5V等,產品被廣泛應用于,平板筆記本,GPS系統,光纖通道,千兆以太網,串行ATA,串行連接SCSI,PCI-Express的SDH / SONET發射基站等領域.符合RoHS/無鉛.

Product Number	Model	愛普生晶振	LxWxH	Output Wave	Supply Voltage	Ope Temperature
X1G005191005600	SG-8101CA	8.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191005700	SG-8101CA	10.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191005800	SG-8101CA	1.843200 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191005900	SG-8101CA	4.096000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191006000	SG-8101CA	6.250000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191006100	SG-8101CA	7.372800 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191006200	SG-8101CA	8.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191006300	SG-8101CA	10.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191006400	SG-8101CA	12.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191006500	SG-8101CA	14.745600 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191006600	SG-8101CA	16.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191006700	SG-8101CA	16.666000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191006800	SG-8101CA	16.384000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191006900	SG-8101CA	18.432000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191007000	SG-8101CA	20.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191007100	SG-8101CA	22.118400 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191007200	SG-8101CA	24.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191007300	SG-8101CA	25.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C

有源晶振是將晶體諧振器和相關功能電路集成封裝在一起，完成特定功能的模塊，應用在手機藍牙、USB及工控類IC時鐘信號等對工藝穩定性要求較高的領域。
